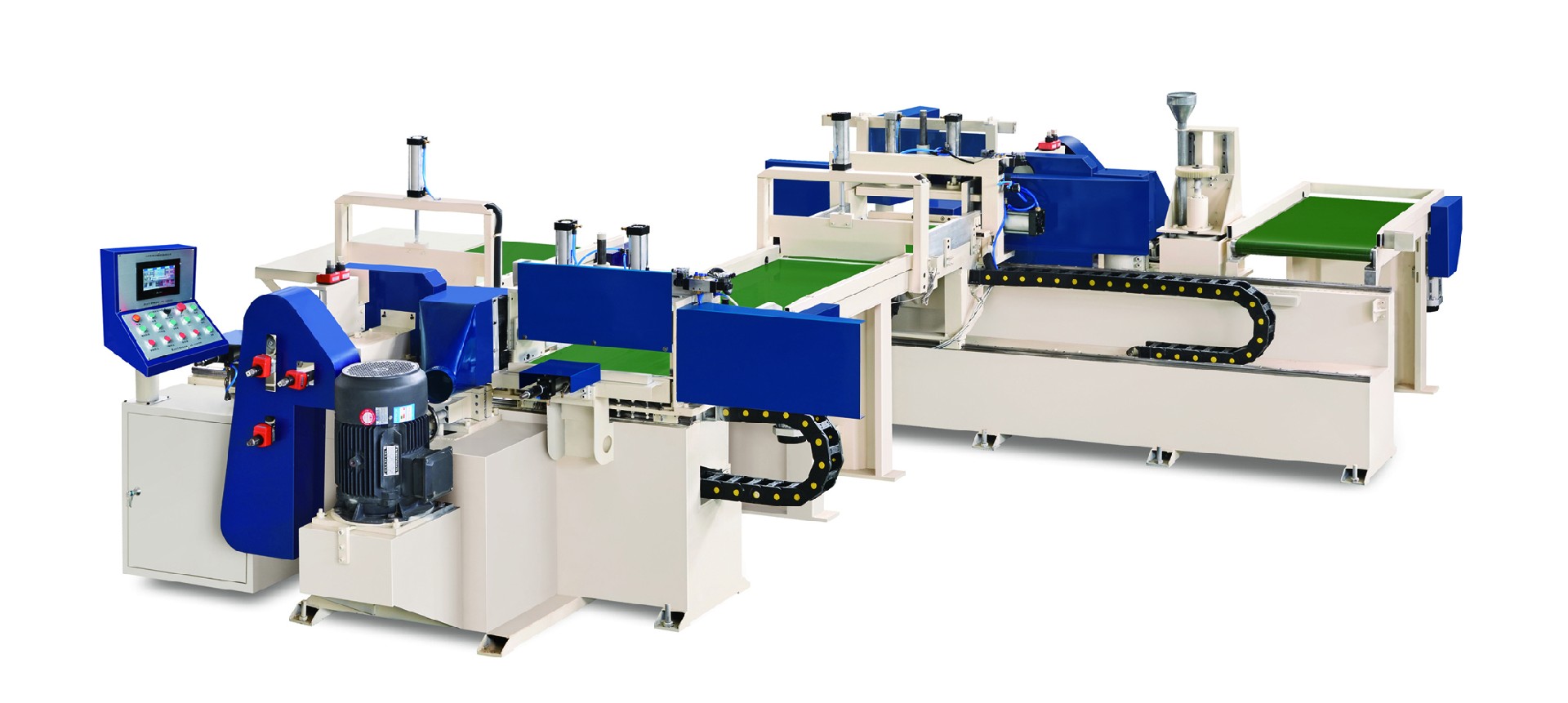

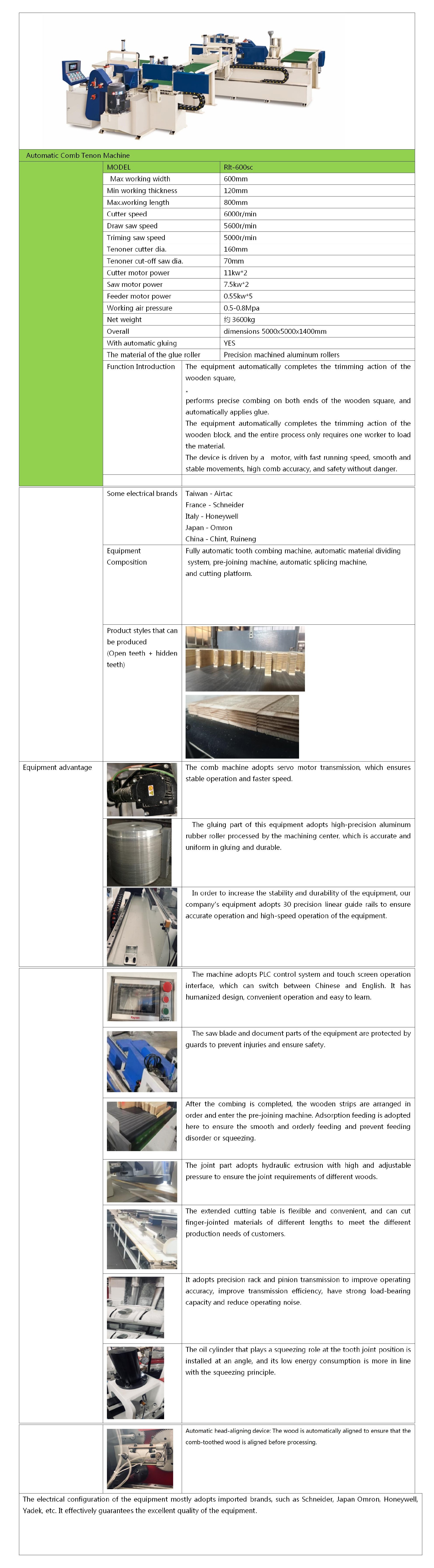

全自动梳齿机 Automatic Comb Tenon Machine

型号

MODEL

Rlt-600sc

最大加工宽度

 Max working width

600mm

最大加工高度

Min working thickness

120mm

最大加工长度

Max.working length

800mm

切榫轴转速

Cutter speed

6000r/min

划线锯转速

Draw saw speed

5600r/min

切头锯转速

Triming saw speed

5000r/min

榫刀直径

Tenoner cutter dia.

160mm

切榫轴直径

Tenoner cut-off saw dia.

70mm

榫刀电机功率

Cutter motor power

11kw*2

锯电机功率

Saw motor power

7.5kw*2

输送带电机功率

Feeder motor power

0.55kw*5

工作气压

Working air pressure

0.5-0.8Mpa

净重

Net weight

约3600kg

外形尺寸

Overall

dimensions 5000x5000x1400mm

带自动涂胶

With automatic gluing

YES

胶辊材质

The material of the glue roller

Precision machined aluminum rollers

功能介绍

Function Introduction

设备自动完成木方的齐头动作，

The equipment automatically completes the trimming action of the wooden square,

对木方两端进行精密梳齿，并自动涂胶。

performs precise combing on both ends of the wooden square, and automatically applies glue.

设备自动完成木方的齐头动作，整个过程只需要一个工人上料即可。

The equipment automatically completes the trimming action of the wooden block, and the entire process only requires one worker to load the material.

该设备采用电机驱动，运行速度快，动作流畅稳定，梳齿精度高，安全无危险。

The device is driven by a  motor, with fast running speed, smooth and stable movements, high comb accuracy, and safety without danger.

设备功能

Equipment functions

对短木条进行开齿并精准接长。满足客户对自动齿接过程中减少人工提高产量的要求。

Short wood strips are toothed and precisely spliced.

This meets customers’ requirements for reducing labor and increasing

production during automatic tooth splicing.

部分电气品牌

Some electrical brands

Taiwan - Airtek   台湾-亚德克

France - Schneider  法国-施耐德

Italy - Honeywell   意大利-霍尼韦尔

Japan - Omron  日本--欧姆龙

China - Chint, Ruineng  中国-正泰、睿能

Germany-Sick    德国西克

可生产的产品样式

（明齿+暗齿）

Product styles that can be produced

(Open teeth + hidden teeth)

设备优势

Equipment advantage

此款设备的涂胶部分，采用加工中心加工的高精密铝制胶辊，涂胶精准均匀，持久耐用。

The gluing part of this equipment adopts high-precision aluminum rubber roller processed by the machining center, which is accurate and uniform in gluing and durable.

为增加设备的稳定性及耐用时间，我公司设备采用30精密直线导轨，确保设备精准运行，高速运转。

In order to increase the stability and durability of the equipment, our company's equipment adopts 30 precision linear guide rails to ensure accurate operation and high-speed operation of the equipment.

机器采用PLC控制系统，采用触摸屏操作界面，可进行中英文切换，人性化设计，操作方便，简单易学。

The machine adopts PLC control system and touch screen operation interface, which can switch between Chinese and English. It has humanized design, convenient operation and easy to learn.

该设备锯片及单据部位，采用护罩保护，防止人员受伤，安全放心。

The saw blade and document parts of the equipment are protected by guards to prevent injuries and ensure safety.

采用精密齿轮齿条传动 ，提高运行精度，提高传动效率，承载力强，降低运行噪音。

It adopts precision rack and pinion transmission to improve operating accuracy, improve transmission efficiency, have strong load-bearing capacity and reduce operating noise.

自动齐头装置：木料自动拍齐确保梳齿木料在加工前对齐

Automatic head-aligning device: The wood is automatically aligned to ensure that the comb-toothed wood is aligned before processing.

该设备电气配置多采用进口品牌，施耐德、日本欧姆龙、霍尼韦尔、亚德克等。有效保证设备的优良品质。

The electrical configuration of the equipment mostly adopts imported brands, such as Schneider, Japan Omron, Honeywell, Yadek, etc. It effectively guarantees the excellent quality of the equipment.
